Schematic Design

Schematic

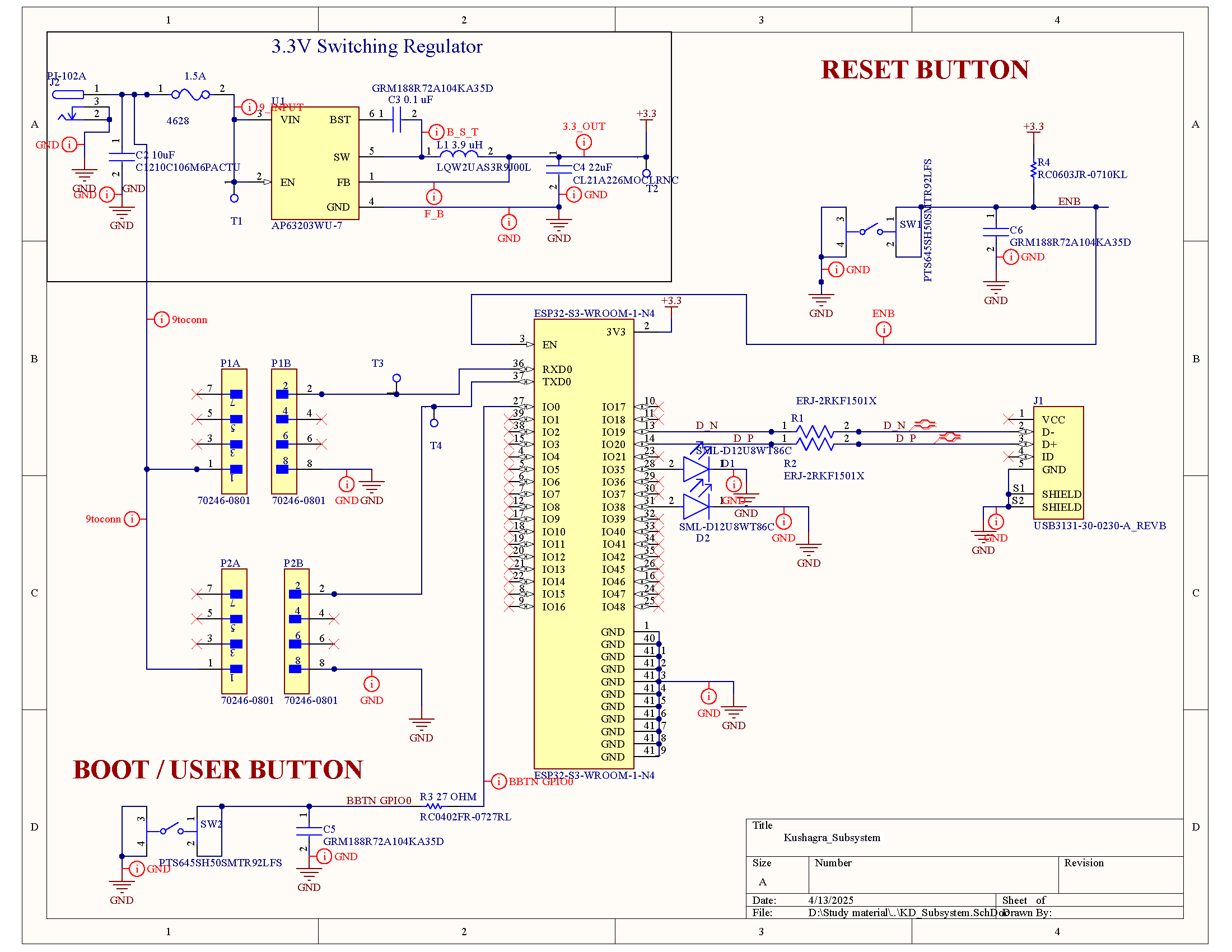

Here is the finalized schematic for the Internet Communication Subsystem:
Final Schematic

Download Subsystem Schematic PDF
Download Subsystem Project Zip

PCB Fabrication

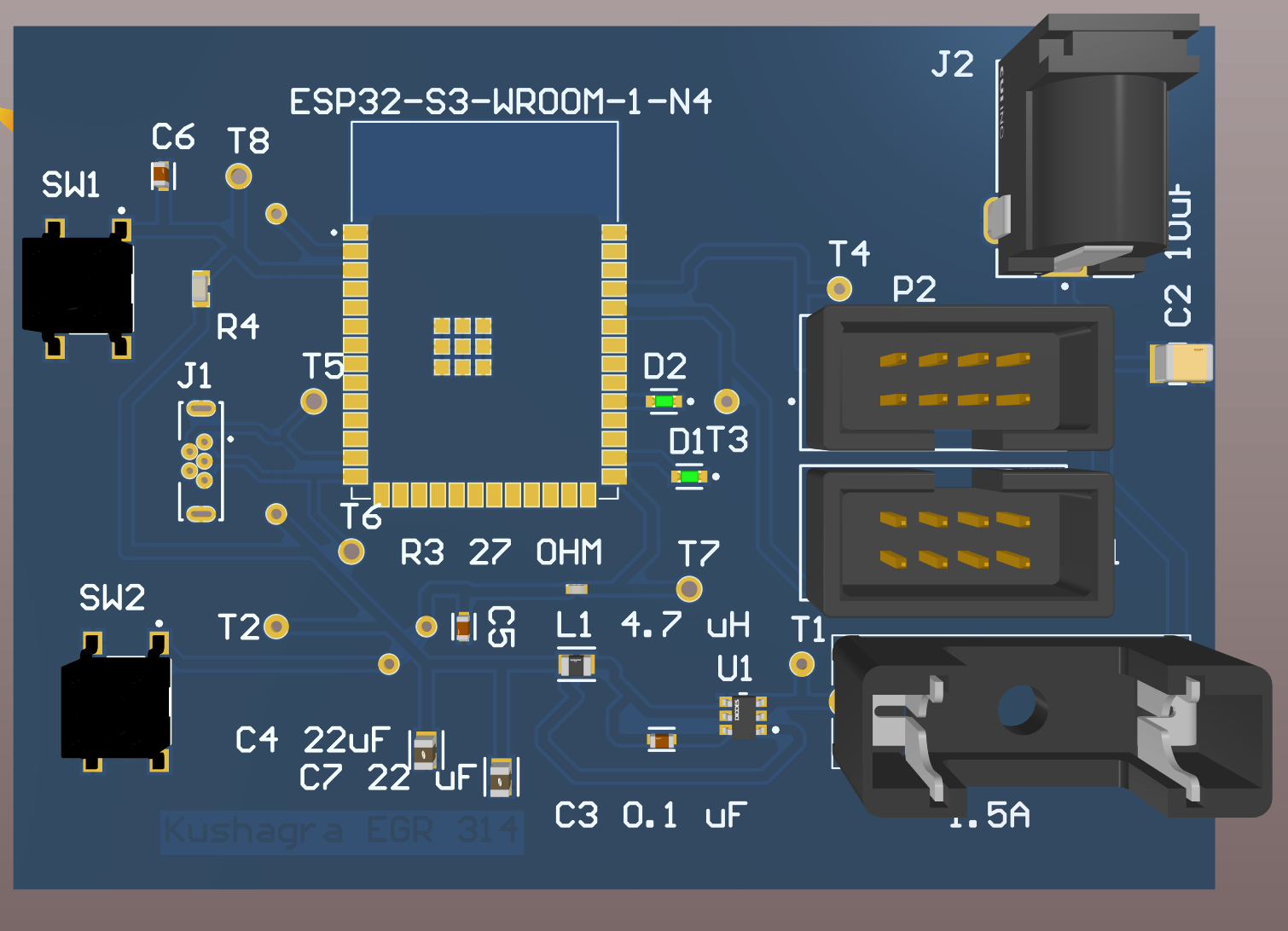

Final Fabricated PCB (Front)

PCB Front

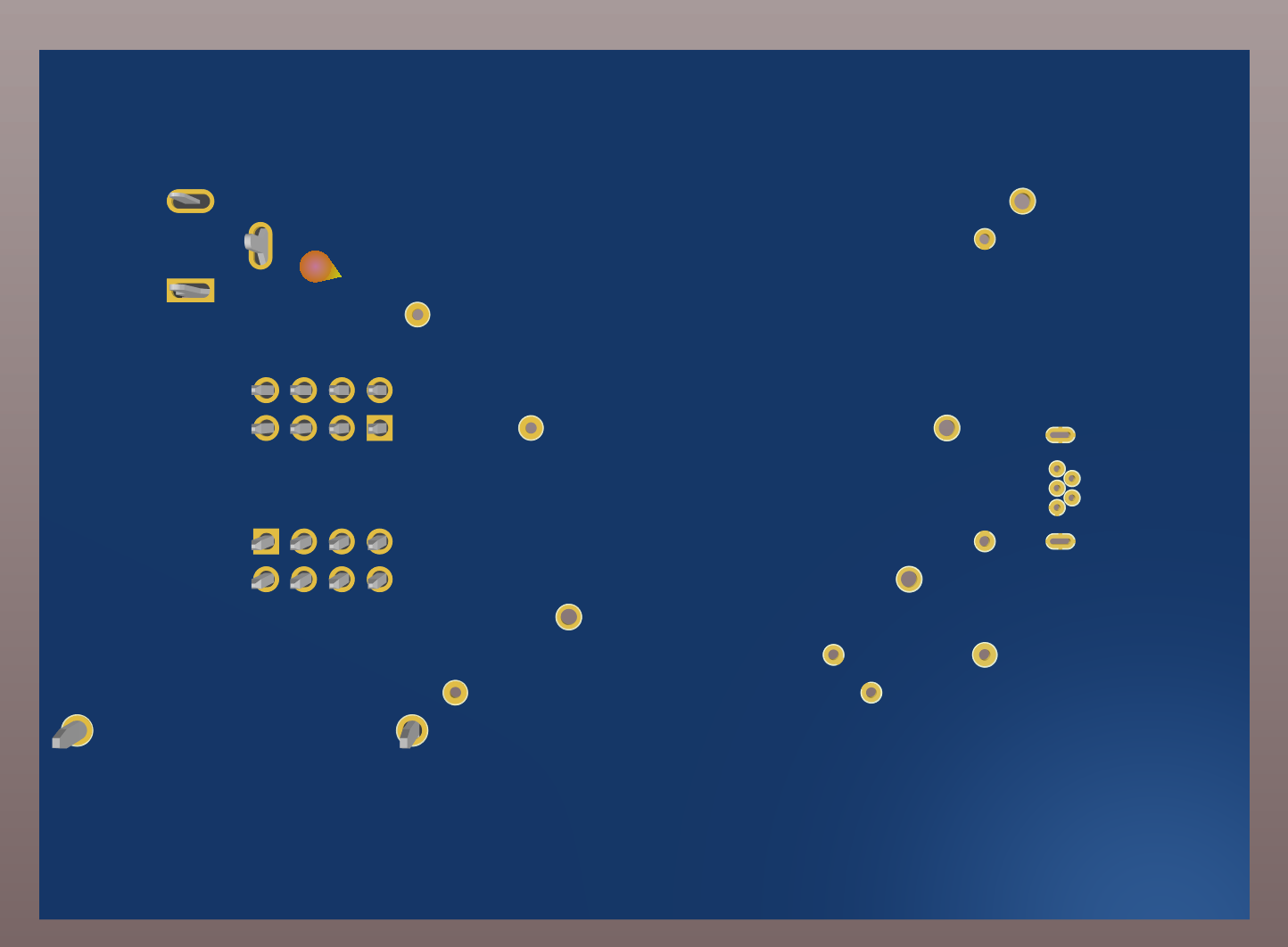

Final Fabricated PCB (Back)

PCB Back

Download Gerber Files (ZIP)

Power Budget

Here is the Power Budget for the Internet Communication Subsystem:

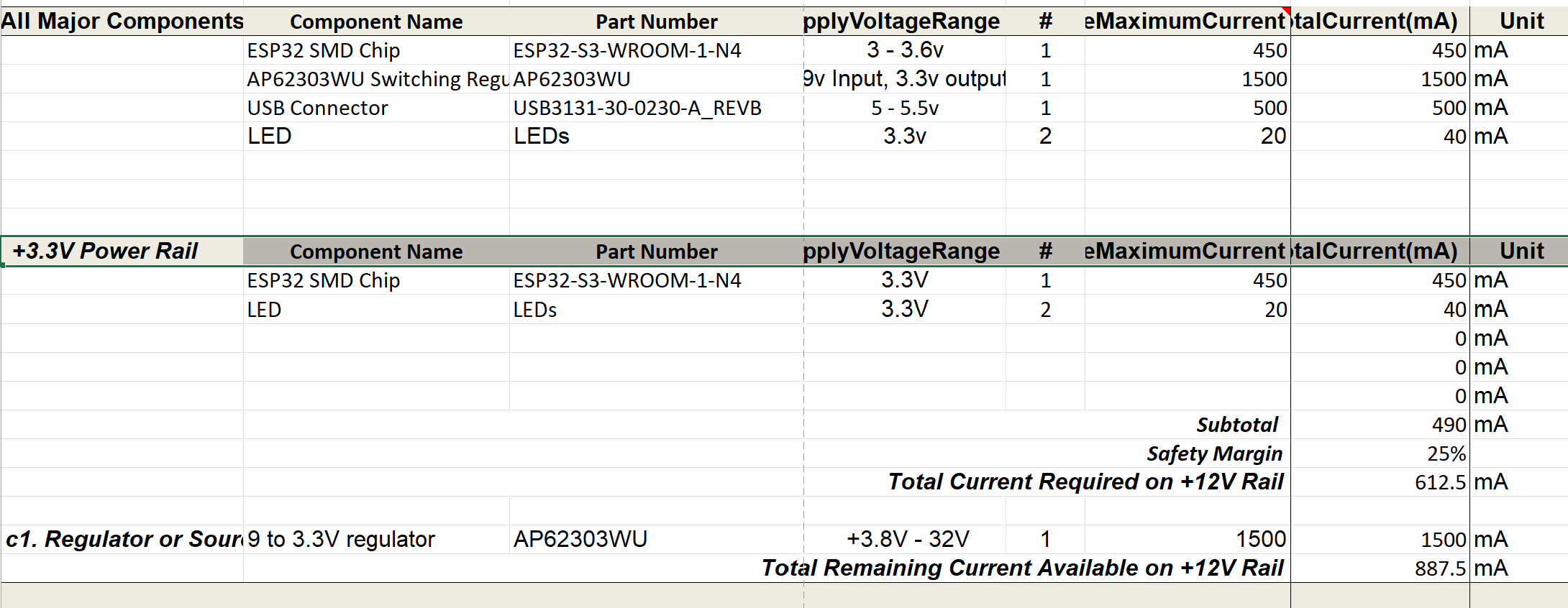

Power Budget Table

Power Budget Analysis

To estimate our power needs, we calculated the maximum current draw from all components that operate on the 3.3V rail supplied by the AP63203WU regulator. The ESP32-S3-WROOM-1-N4 was the dominant power consumer (450 mA peak during Wi-Fi transmission), followed by minor contributions from the indicator LEDs.

The regulator chosen supports up to 1500 mA of current output, leaving us with a healthy safety margin even during peak operation. This ensures thermal efficiency, prevents brown-outs, and allows headroom for future expansions.

Conclusion:
The power budget confirms our regulator selection is more than sufficient and offers protection from overcurrent scenarios, validating the electrical stability of our subsystem.

Functionality and Design Justification

This schematic was created to satisfy both the user needs and the technical product requirements. These include:

  • Real-time sensor data collection via UART communication,
  • Wireless data transmission using the ESP32’s Wi-Fi capability to update a GitHub-hosted webpage,
  • Stable voltage regulation using a high-efficiency switching regulator,
  • System integration via upstream/downstream headers for communication with other subsystems.

Functional Highlights: - The ESP32 handles UART and GPIO interfacing, while also maintaining a non-blocking Wi-Fi transmission loop. - A 3.3V power rail feeds all digital logic components without needing level shifters. - LED indicators were added to give real-time feedback on power and network status.

Design Process and Team Decision-Making

The schematic and PCB layout evolved through iterative prototyping and weekly team meetings. Key decisions were based on:

  • ESP32 pinout conflicts during UART usage (resolved by selecting GPIO 43/44),
  • Heat concerns under continuous transmission (solved using a switching regulator instead of a linear one),
  • Simplification of routing by aligning headers symmetrically to upstream/downstream edges,
  • Collaborative reviews to ensure all connector orientations, silkscreens, and test pads were accessible.

Feedback from mentors emphasized modularity, which drove the header-based design allowing plug-and-play across team boards.

Future Improvements (Hardware Design v2.0)

If we were to redesign our board for Version 2.0, the following enhancements would be made:

  1. Add ESD protection diodes on UART/GPIO lines to prevent static damage during field testing.
  2. Include programming headers or exposed test points for easier debugging without removing the board from the enclosure.
  3. Redesign footprint placements to reduce trace length between regulator and ESP32 for improved power integrity.
  4. Add onboard reset and boot buttons for easier flashing during development.
  5. Use a larger copper pour for GND to improve heat dissipation during Wi-Fi peak load.

These improvements would enhance durability, reduce development friction, and improve overall board manufacturability and serviceability.
